SparkFun Inventor's Kit
LCD Errata
Version 4.0 of the SparkFun Inventor's Kit Guide Book has an error in the Hookup guide for Circuit 4A: LCD "Hello, World!"

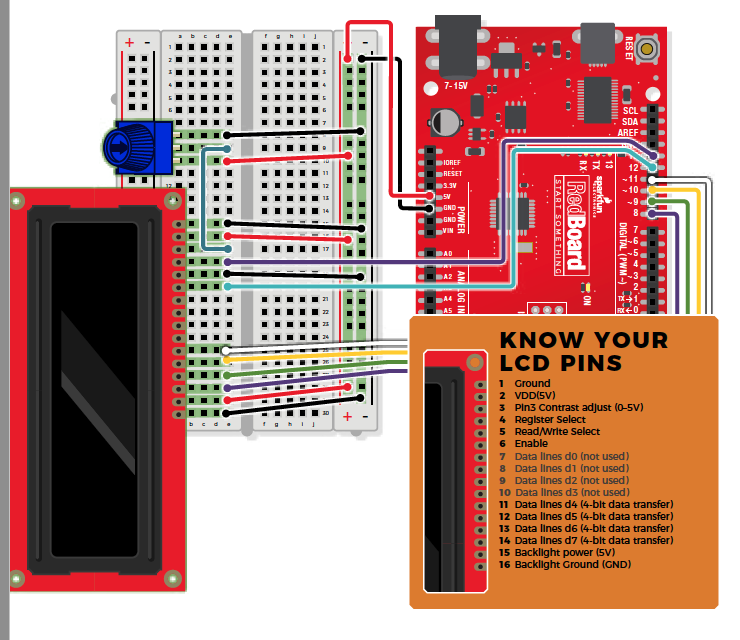

Use the following image
NOTE:
The error is that the power and ground wires connected to rows 15 and 16 are incorrect.
-
Row 15 should be connected to ground (the - column)
-
Row 16 should be connected to power (the + column)

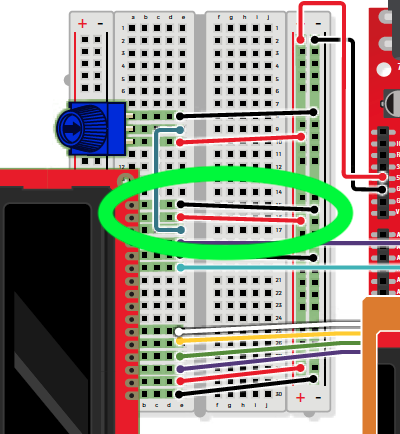

correct connection detail in the following image:
