Stern Star Rollover

520-8527-001

• Pinball Life
• Product ID: 511-7544-0X

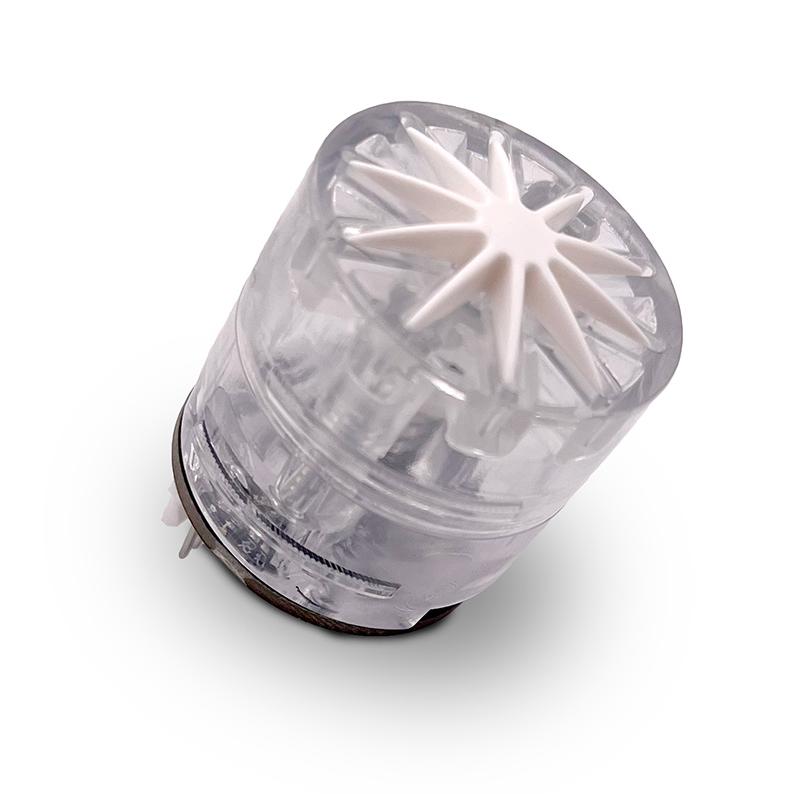

• Stern Star Rollover Switch Assembly

Connecting the Switch Out pin to one of the switch input pins on a CobraPin Pinball Controller works fine.

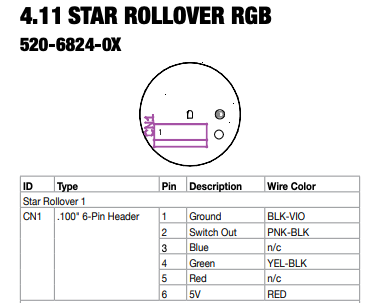

Pinout

• found in the Primus Service and Operation Manual on page 27

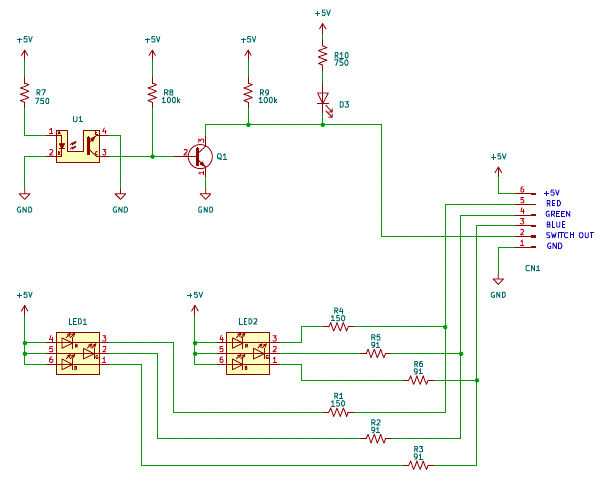

Schematic

•

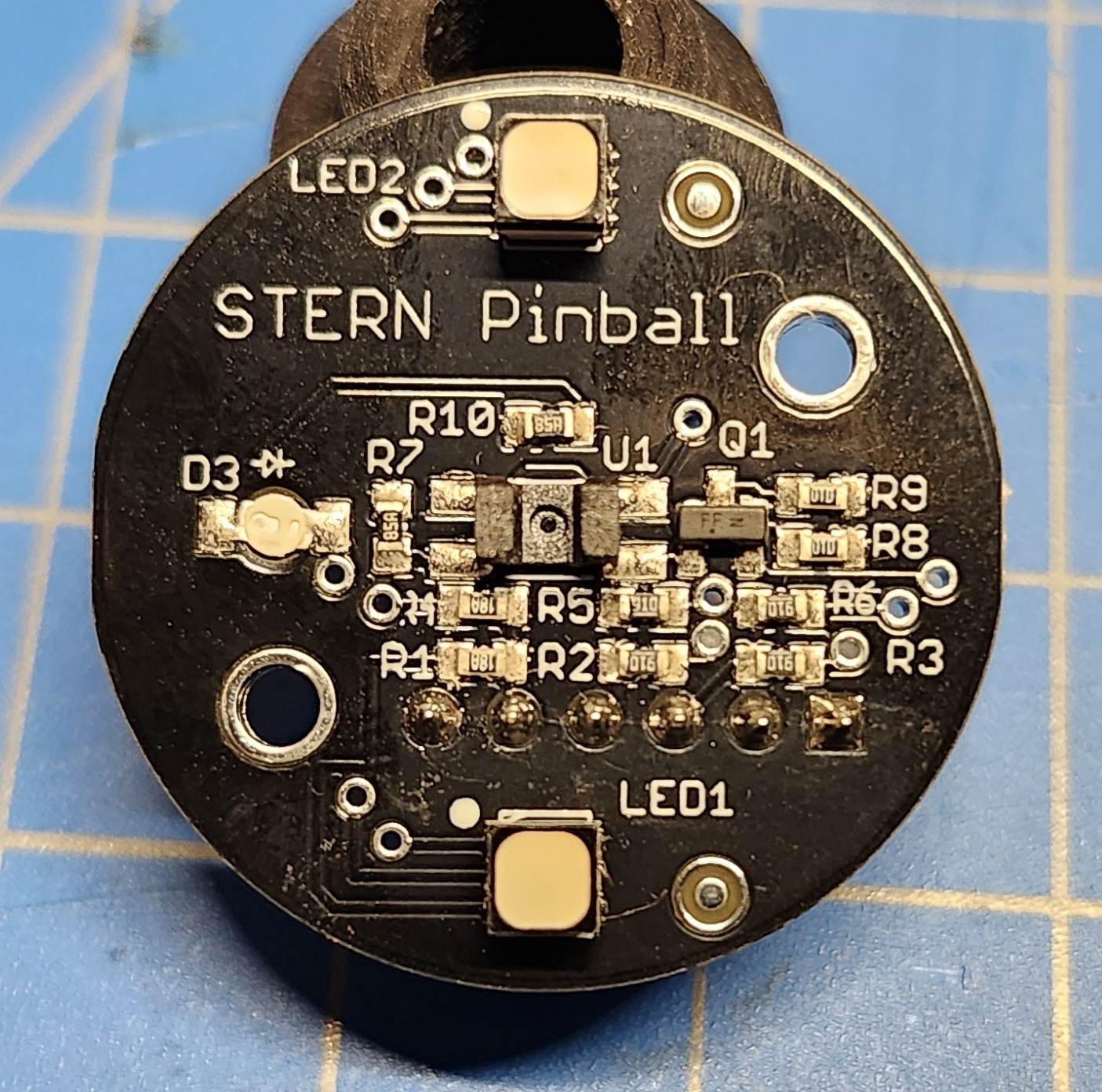

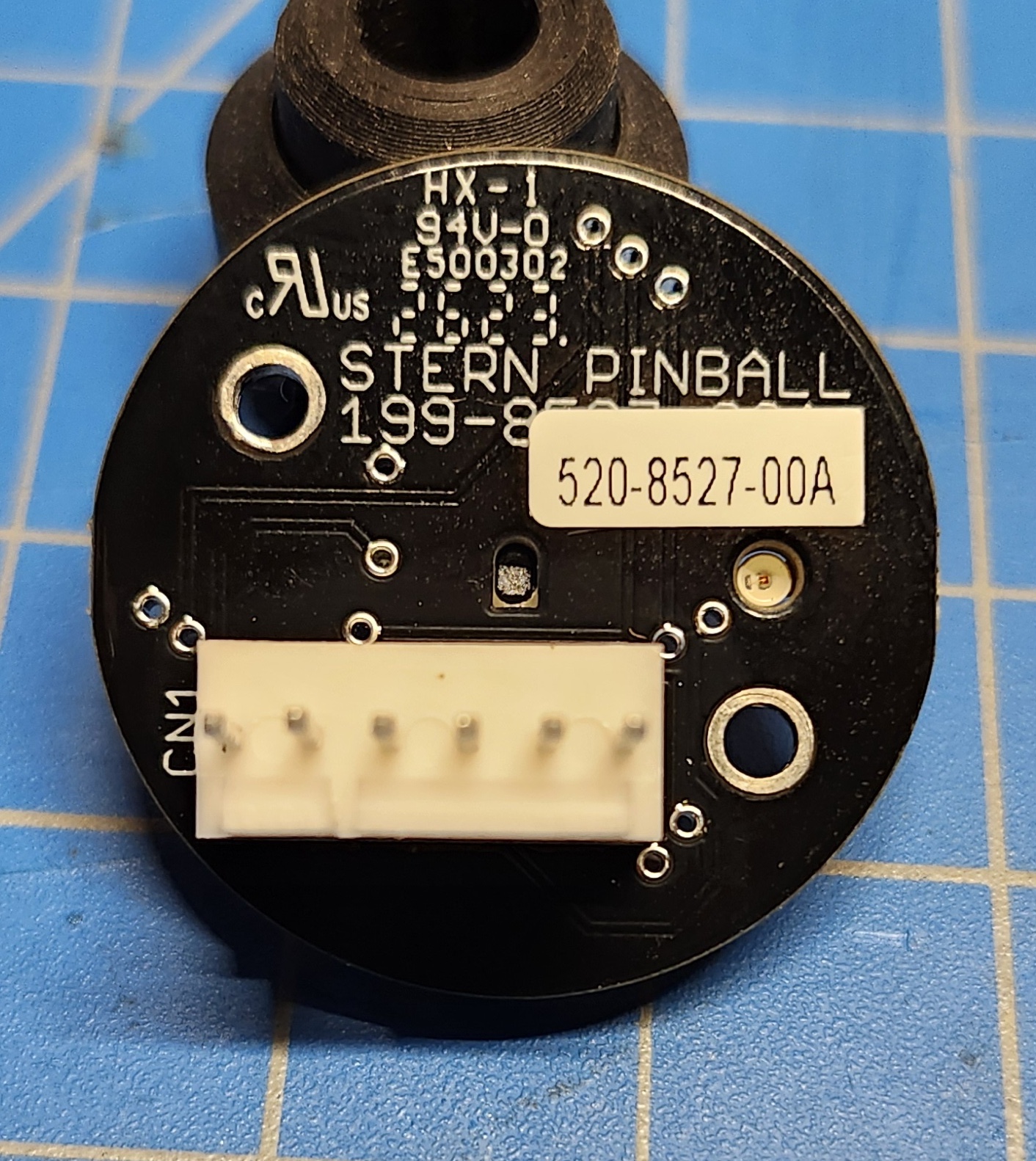

PCB Images

•
•
